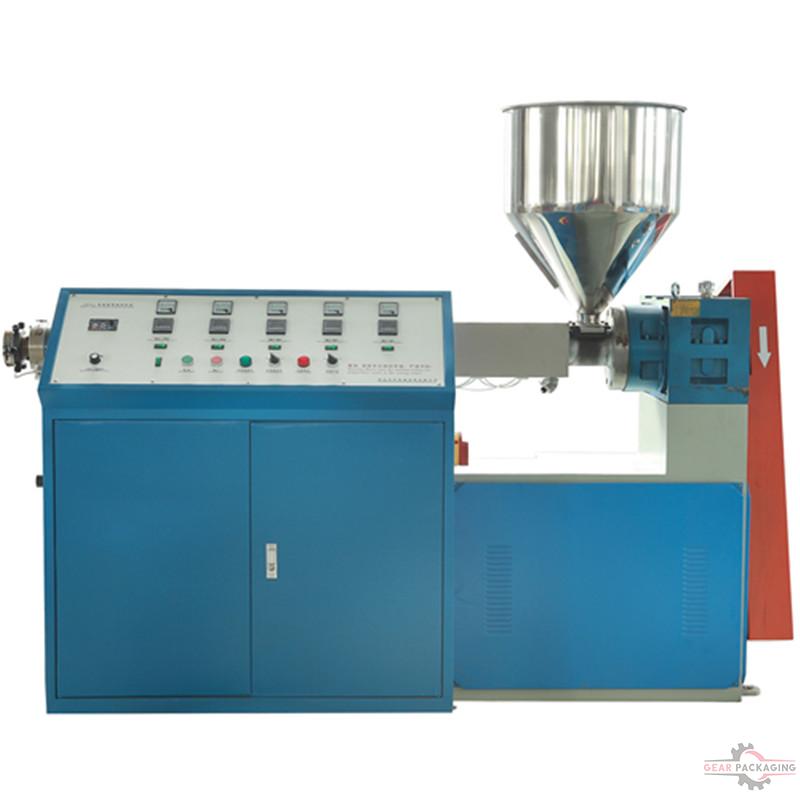

  • One Colour Automatic Straw Making Machine Single color automatic plastic tube food drink beverage instant straw making production machine equipment
One Colour Automatic Straw Making Machine Single color automatic plastic tube food drink beverage instant straw making production machine equipment

One Colour Automatic Straw Making Machine Single color automatic plastic tube food drink beverage instant straw making production machine equipment

  • Model:GP-011
  • Type:Sraw making Machinery
  • Packaging Type:Straws
  • Dimension :9m×1m×1.7mm
  • Product description: One Colour Automatic Straw Making Machine Single color plastic tube food drink beverage instant straw making production machine equipment
  • INQUIRY

Description:

One Colour Automatic Straw Making Machine Single color plastic tube food drink beverage instant straw making production machine equipment

one color drinking straws extrusion line uses polypropylene (PP) as raw materials, with the use of masterbatches, after melting, extrusion, shaping, cooling, pulling, cutting, then produce transparent, one color, two color, and three color drink straws. It is composed of main body, tooling, cooling system, cutting machine, with a variety of models such as single color extrusion line, two color and two color co-extrusion line, three color extrusion line, etc.
Characteristics:
1. Wide application: Drinking straw, candy bar, pen tube, cotten swab stick, medical tube, all kinds of toys tube, etc.
2. Easy to operate. One operator is enough to run the whole line
3. Cut form: Diversified in cut-end: 90° /90° , 90° /45° , 90° /60° , 45° /45° , 60° /60°
4. With stable output and wide range of color options. (single, two, three or multi-color stripes, straight or spiral)
Parameters:

Color

single

Two

Three

Model

011

012

013

Main parts

Main parts are: extruder, cooling water tank, vacuum shaping equipment, air compressor,

hauling cutting system, single color, two color or tricolor pipes can be realized.

Power supply

Main screw

380v ,3phase,50hz,7.5kw(VFD)

Sub-screw

/

0.75kw

0.75×2kw

Heating

7kw

9.56kw

12kw

Hauling motor

0.75kw(VFD)

Cutting motor

0.75kw(VFD)

Total power

16.5kw

20kw

22.5kw

Temperature Controller

5sets

8sets

11sets

Electric control cabinet

1set

1set

1set

Automatic Counting Device

1set

1set

1set

Way of Hauling

By rubber roller

Way of cutting

Rotatory cutting

Cooling water tank

Usually 3.5m, can be adjusted updown, right left, forward backward.

Option

Vacuum pump (0.75kw)

Air compressor (2kw)

Specification of Pipe

Material

PP PE etc.

Diameter

2mm~13mm

Length

Customizable

Speed

600~1000pcs/min

Color

Single

Two

Three

Straight or spiral strips

Cutting End

90°/90°,90°/45°,90°/60°,45°/45°,60°/60


Machine dimension L×W×H

9m×1m×1.7mm

9m×1.5m×1.7m

9m×2m×1.7m

Weight of equipment

1000kg

1500kg

2000kg

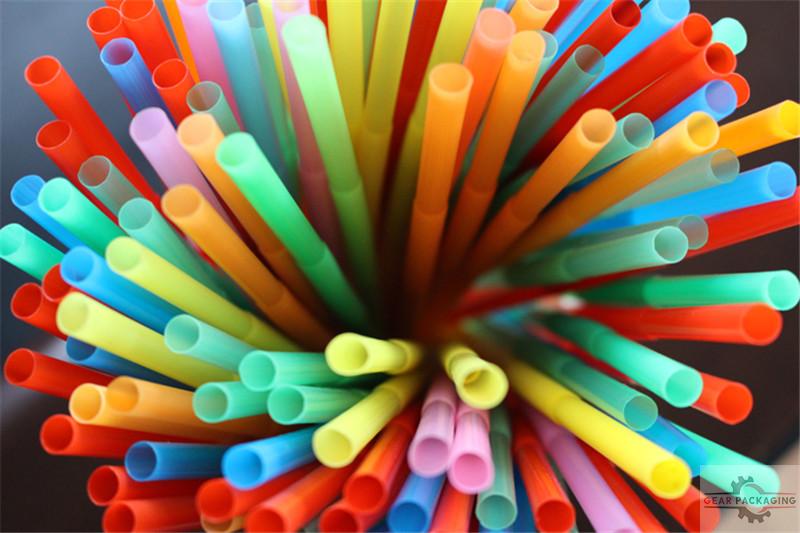

Straw samples:

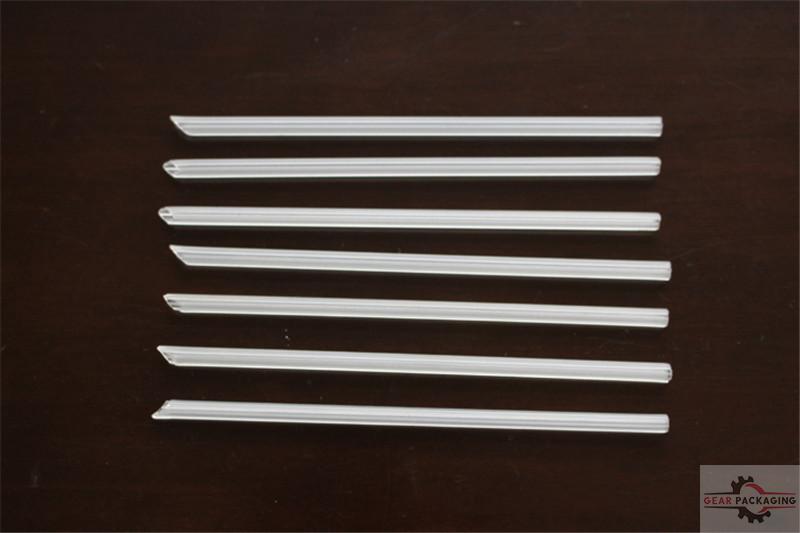

One color straws:
