Form-Fill-Seal

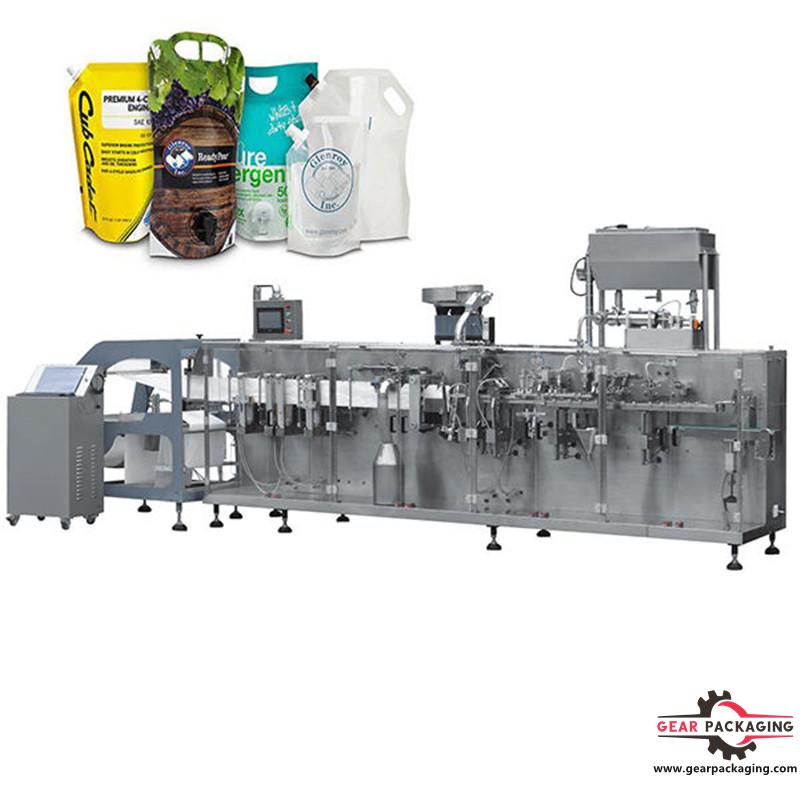

Paste ketchup standup bag H.F.F.S. Pouch Packaging Machine ketchup doypack standup pouch packaging capping machine for bag pouch with caps

Model:GP-240L
Type:Form Fill Seal
Packaging Type:standup pouch
Dimension:5230×1000×2000mm
Product description: Paste ketchup standup bag H.F.F.S. Pouch Packaging Machine ketchup doypack standup pouch packaging capping machine for bag pouch with caps
INQUIRY

Description:

H.F.F.S. Pouch Packaging Machine ketchup doypack standup pouch packaging capping machine for bag pouch with caps

Applications

Form-Fill-Seal doy pack pouch , good for regular doy pack pouch, pouch with reclosable zipper, spout & cap, hanging hole, different shape. Full servo technology machine ,fast in packing, stable in operating, Durable machine with reasonable price.

Flexible to fill and pack various product such as powder, liquid ,viscous liquid, granule, tablet , solid ,candy, stick product. Hundres machines already served in Food, beverage, cosmetics, personal care, household, chemicals and pharmaceutical industry.

Features

Versatility strong, one machine can be realized powder, liquid, granules, paste different types of

packaging materials.

Automatic servo-correcting device can effectively solve the bag wrong side of the issue to ensure the overall stability of equipment, improve packaging speed.
Linear servo pull bag system that automatically adjust bag width size, improve equipment stability.
Product packaging system: using heat sealing packaging materials (polyethylene, multilayer composite coating),the automatic bagging completed. Measures such as packaging filling and sealing process fully automated production facilities.Trilateral closure pocket or bag is a four-sided flat closure. Use different forms of filling machine, and packaging different products.

Control System: PLC programmable computer controller Schneider-electric inverter and so on, high integration, the ability to control and reliable operation .Touch screen technology enabled applications to operate machines more reliable and convenient .Photoelectric sensor, encoder,the switches are close to the import of advanced sensors. Machinery and electronics integration has been a perfect performance.

Filling System: FESTO system, reliable and stable performance adjustments quick and easy.

Technical Data

Machine operation	HFFS	Horizontal form fill and seal
Technology concept	Pouch origin	Form the reel
	Pouch transport system	intermittent
Construction	Machine frame	Stainless steel SUS304/ Carbon steel
	Except internal mechanisms	Parts painted Stainless steel colourand
	Parts in contact with product	Stainless steel SUS316L
Reel	Reel diameter	600mm
	Reel Width	620mm
	Reel core	76mm
Filling stations		2 (with 2 heads)
Product production		Optional gas flushing (N2) or steam injection
Machine dimensions	Length×width×height	5230×1000×2000mm
Machine weight		2000Kg
Pouch dimensions range(mm)	Length×width×height		Minimum	Maximum
		FLT-1	70×110	160×250
		FLT-2	60+60×110	80+80×250
		STU-1	70×110×(22+22)	160×250×(48+48)
		STU-2	70+70×110×(22+22)	80+80×250×(32+32)
Packaging speed (pouches per minute) And pouch volume (c.c)	with 3 and 4 side seals		Speed maximum(ppm)	Volume maximum(c.c.)
		FLT-1	90	500
		FLT-2	160	80
	With doypack	STU-1	70	1000
		STU-2	120	200
Consumption	Electrical	11.0kw
	Air consumption	100L/min 0.6Mpa
Electrical Data		200-415V/50-60Hz/N+G
Noise level		≤70dB
Safety		CE standards
