Form-Fill-Seal

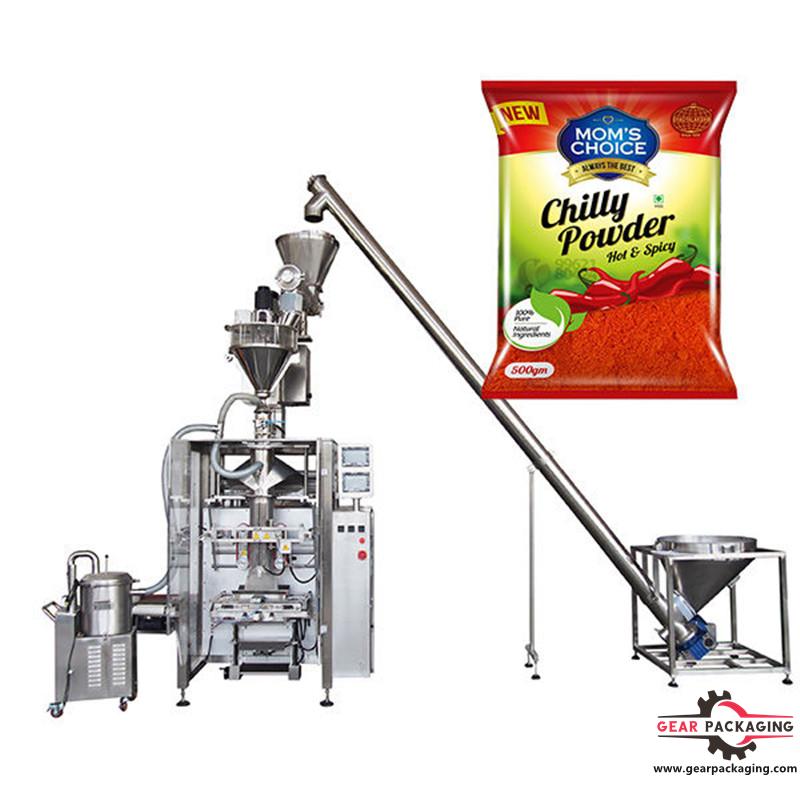

  • vffs bagger packing machine with auger filler for paprika and chilli food powder
vffs bagger packing machine with auger filler for paprika and chilli food powder

vffs bagger packing machine with auger filler for paprika and chilli food powder

  • GP-VF320
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Bag shape:Back sealing pillow bag/4-side sealing
  • Product description: vffs bagger packing machine with auger filler for paprika and chilli food powder
  • INQUIRY

Description:

vffs bagger packing machine with auger filler for paprika and chilli food powder


Applications


Suitable for spice powder, flour, coco powder, chili powder, turmeric powder, masala powder, chemical powder, pepper powder etc automatic packaging.

Features


1.More than 20 languages can be chose,parameter and function setting convenient with touch screen.
2.PLC intelligent control system,operation more steady without stopping machine.
3.Double frequency converter control, bag length can be set and cut at one step, saving time and film.
3. Self-diagnose function, all the fault will be display on the screen,easy to maintenance.
4. High sensitivity photoelectric eye color tracing, number input of bag size ,cutting position accurate.
5.Temperature independent PLC control, more suitable for packing different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through solfware, easy for function adjusting and technical updating.

Technical Specifications


Machine model GP-VF320 GP-VF420 GP-F520 GP-VF620 GP-VF720 GP-VF820
Bag shape Back sealing pillow bag/4-side sealing
Packing speed 25-80bags/min
Roll thickness


0.05-0.15mm
Max roll width 320mm 420mm 520mm 620mm 720mm 820mm
Roll diameter


320mm 320mm 320mm 320mm 320mm 320mm
Bag width 50-150mm 60-200mm 80-250mm 100-300mm 100-350mm 120-400mm
Bag length 80-240mm 80-300mm 80-350mm 100-450mm 100-450mm 120-550mm
Voltage 220V
Power 2KW 2.2KW 3KW 3.4KW 3.6KW 3.8KW
Additional configuration Nitrogen filling device   Coding printer     gas-filled device   punch device etc

Advantages:


1.Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;

2. Intelligent: Packing speed and bag length can be set through the screen without part changes;

3. Profession: Independent temperature controller with heat balance enables different packing materials;

4. Characteristic: Automatic stop function, with safe operation and saving the film;

5. Convenient: Low loss, labor saving, easy for operation and maintenance.
