Drinking straw film cold cutting packing machine single straw cutting piece by piece automatic straw tube packaging system high speed

Model:GP-X22
Type:Straw Packing Machinery
Packaging Type:Straws
Dimension:2000×900×1600mm
Product description: Drinking straw film cold cutting packing machine single straw cutting piece by piece automatic straw tube packaging system high speed
INQUIRY

Description:

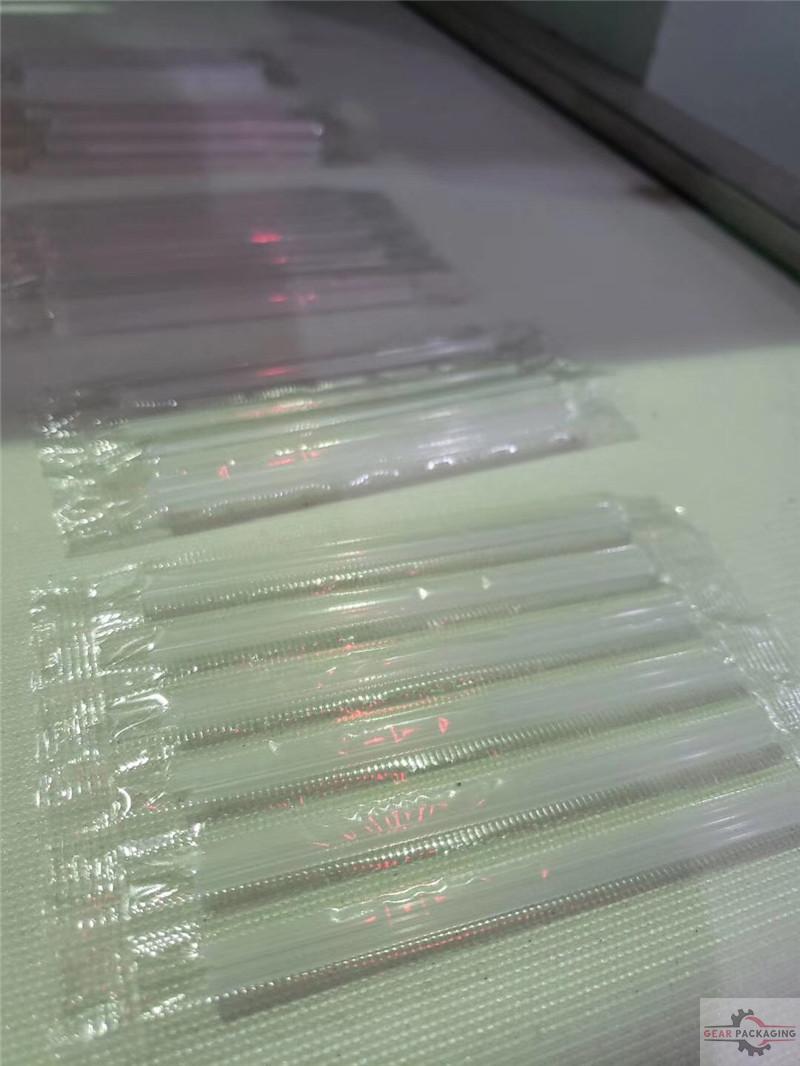

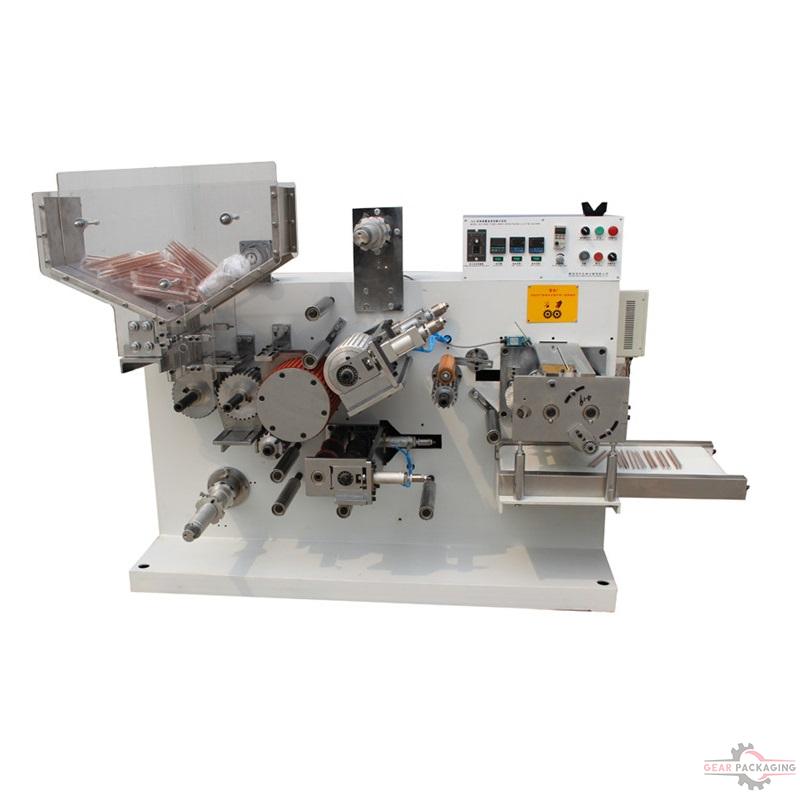

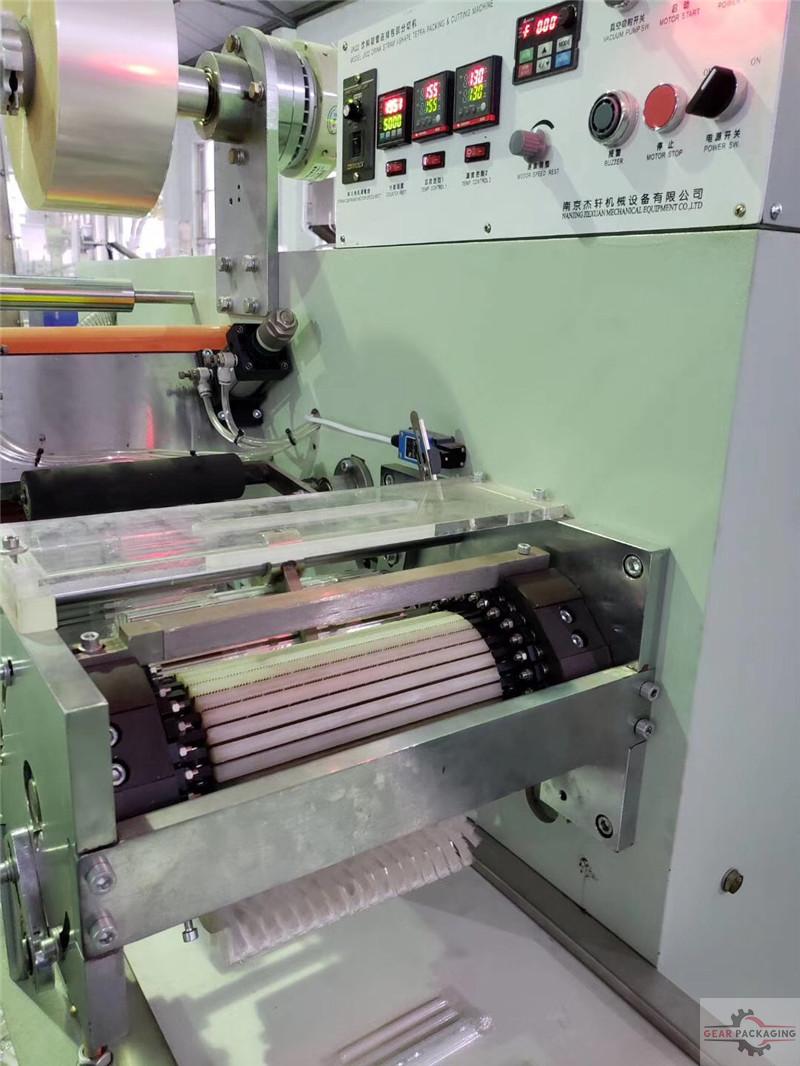

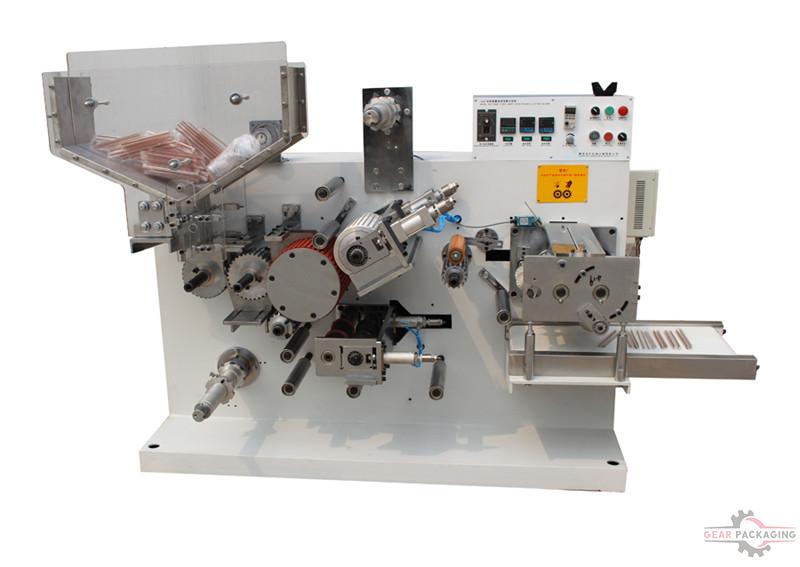

This machine is an equipment for packing straws into bag automatically and cutting single-straw piece by piece.

Characteristic

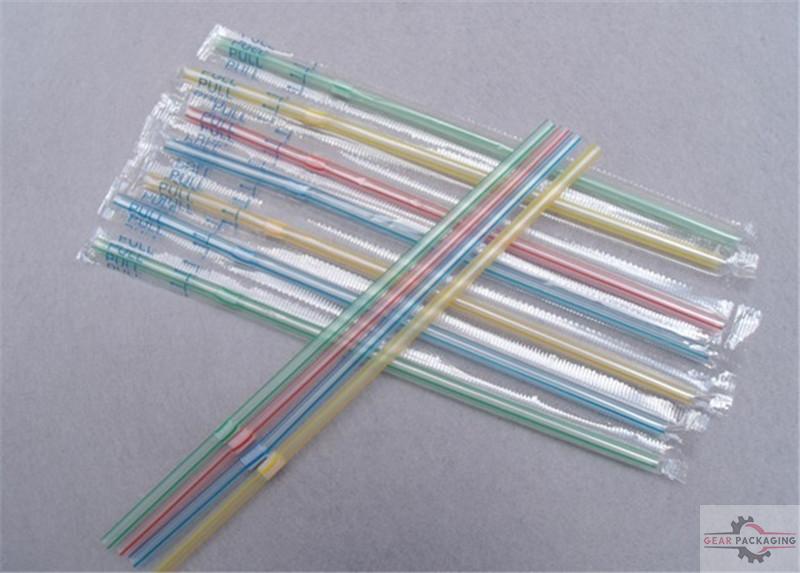

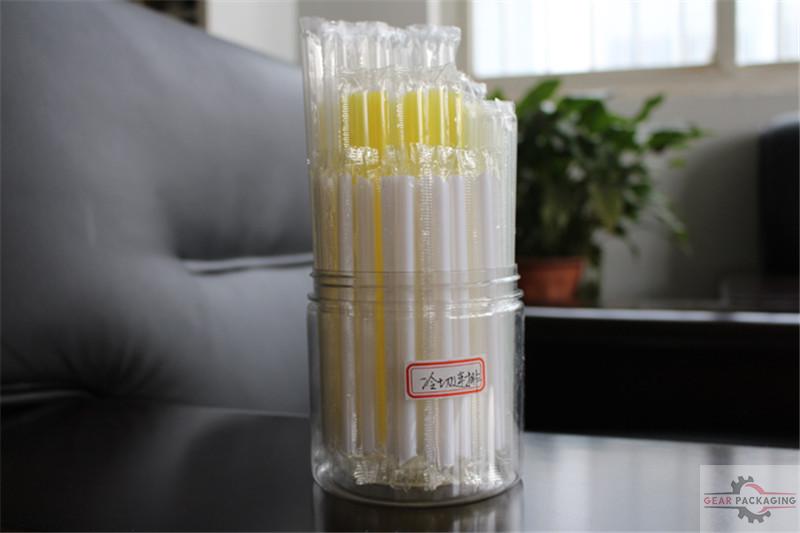

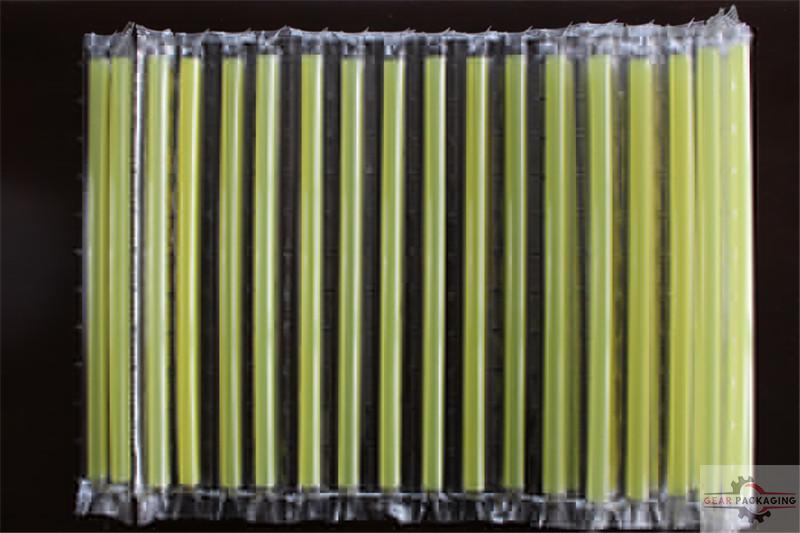

1. Pack single straw with row. Complete stuffing and packing at a time.

2. Automatic counting and batch alarm.

3. Adjustable packing speed.

4. Automatic stop when lack of straw.

Parameter

Driving Motor	0.75kw control by frequency conventer
Capacity	Straight straws: 600-800 pcs/min Flexible straws: 350-450 pcs/min

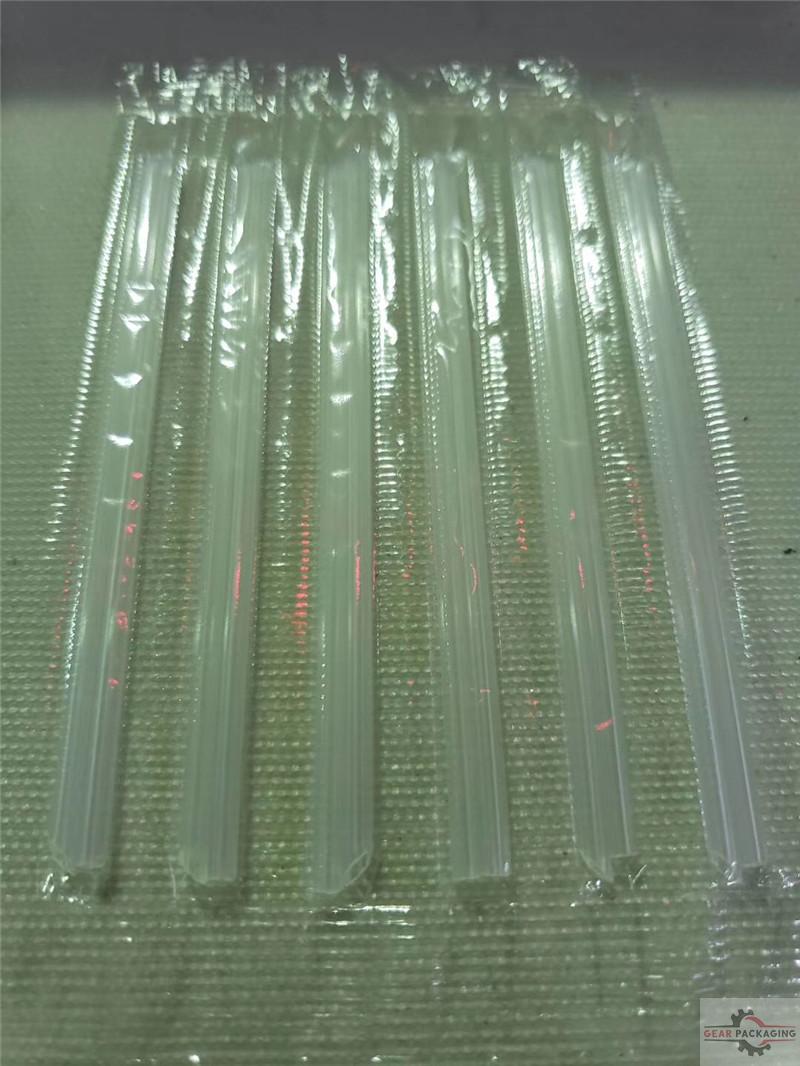

Packing Mothod	Four-sided sealing (serrated). Can be cut to single pcs or 4, 5, 10, 20pcs
Specifications of the Packing Material	Material	Can be hot sealed such as BOPP
	Shape	Roll
	Roll diameter	Max: 340mm
	Internal diameter of paper tubes	75mm
	Width of BOPP film	Max: 280mm
	Thickness of BOPP film	20μ-30μ
Packing Shape	15mm(pitch)×96~250mm(width)
Straws Specifications	Inner diameter	2.5~7mm
	Straw thickness	0.15-0.25mm
	Straw length	90-250mm(normal)
Other Specifications Can be customizable
Size (LWH)	2000×900×1600mm
Weight	400kg
