Filling Sealing Machine

  • Effervescent tablets tube filling sealing machine
Effervescent tablets tube filling sealing machine

Effervescent tablets tube filling sealing machine

  • Model:GP-40A
  • Type:Filling sealing Machinery
  • Packaging Type:Effervescent tablets
  • Dimension :2300x1600x1680mm
  • Product description: Effervescent tablets tube filling sealing machine


Technical specifications:
Capacity :40 bottle per min
Tablet thickness :3-8mm ,tablet diameter :16-30 mm ;
Filling quantity :10-30 tablets /bottle
Compressor Air and Consumption :0.5—0.6MPa 0.28CBM/min
Power :0.8KW 220V 50HZ
Overall Size:2300x1600x1680mm
Net Weight :400KGS

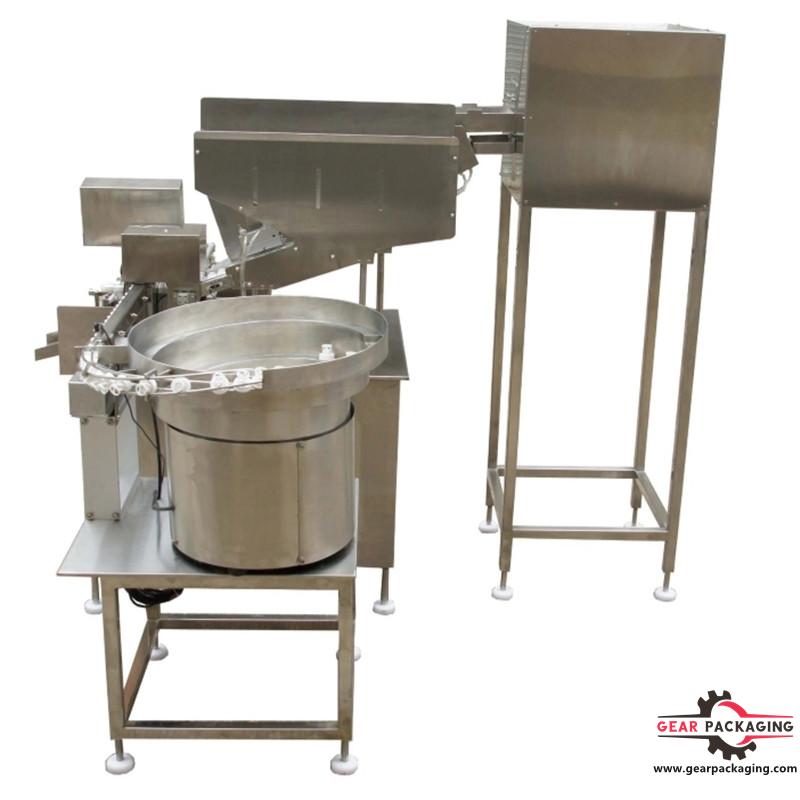

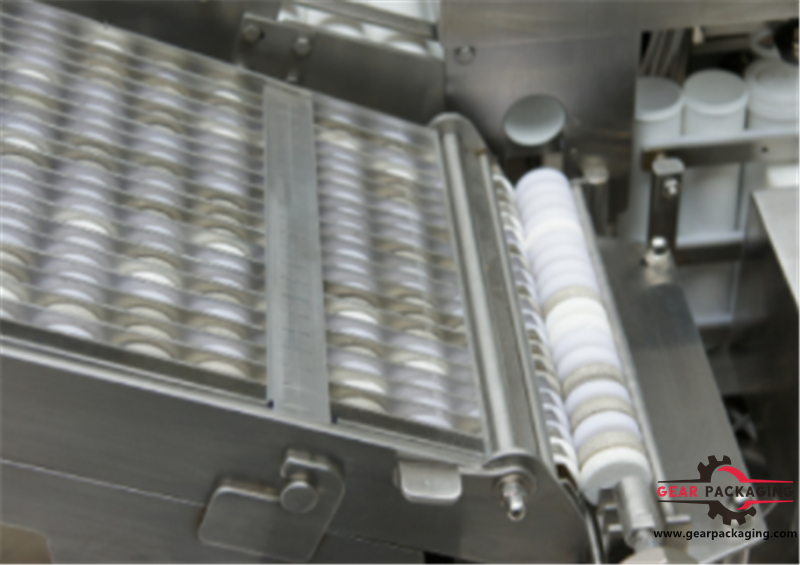

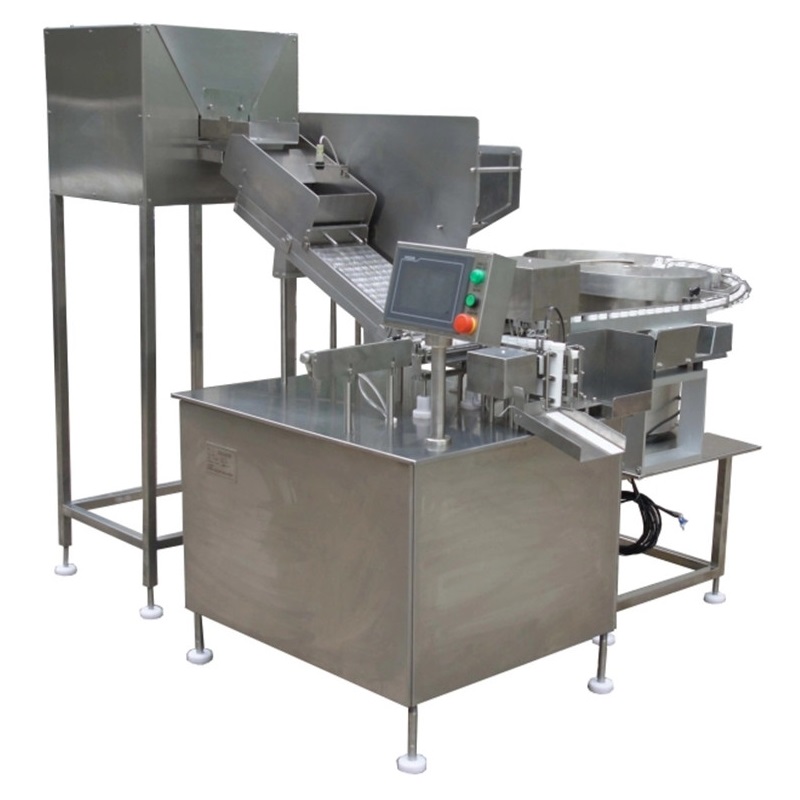

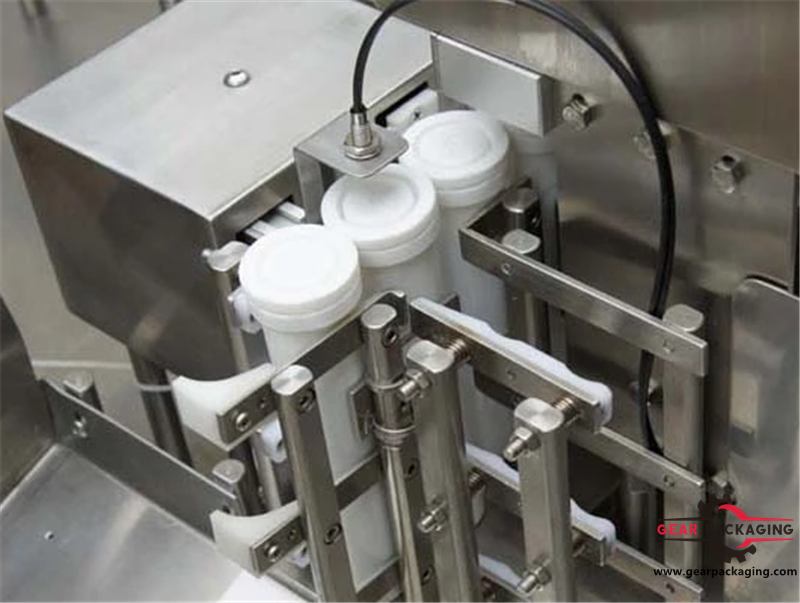

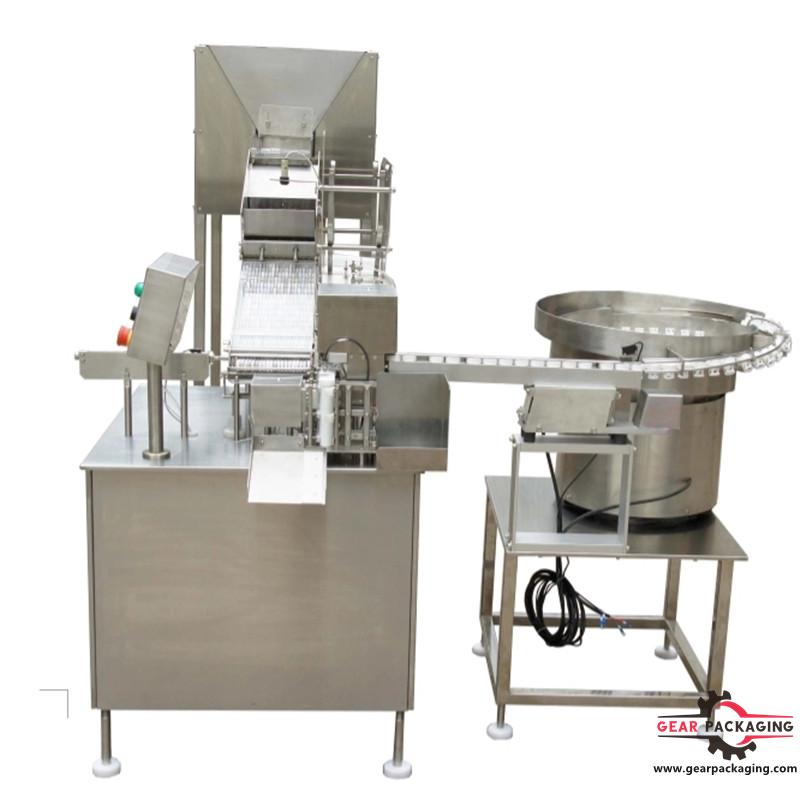

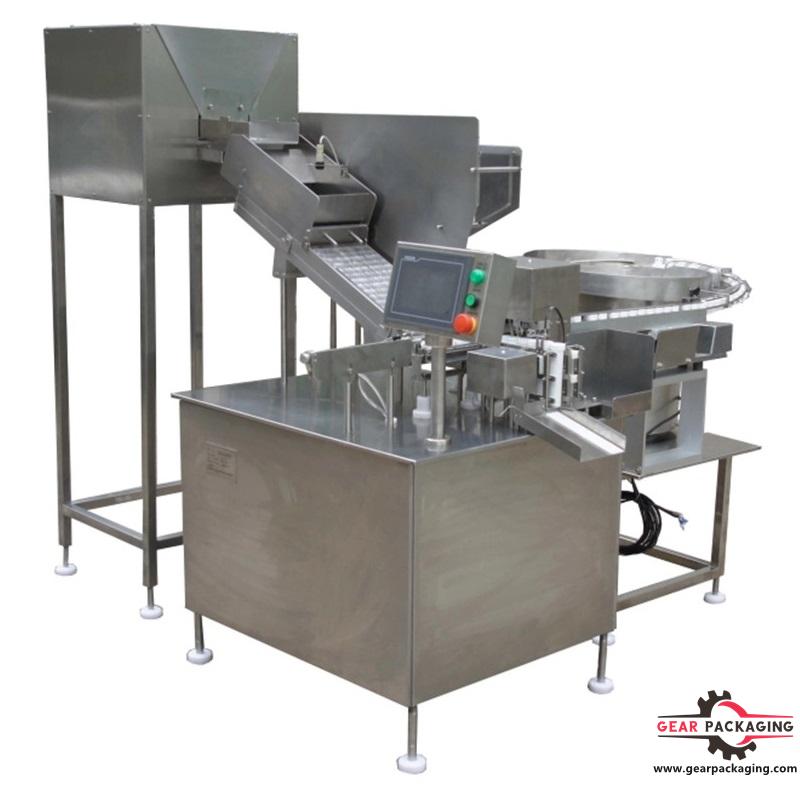

Product Pictures

Tube Tablet filling machine Effervescent Tablets Tube Filling Packaging Machine Model GP-A40  is applicable to the packing of bigger and thinner tablets which are orderly fed into straight-tube bottles in a single row in an overlapping way. The device utterly adopts a PLC for centralized control ,.its verified in fiber and photoelectric detections and other kinds of detections to have steady performance and reliably automatic operation ,it can automatically give alarms and shut down in case of no tablets ,bottles or covers ,its part in contact with the tablets is made of superior 304 or 316L stainless steel .which totally meets the GMP requirements .Thus ,its is the best device for pharmaceutical factories ,health product factories and food factories to pack effervescent tablets and other products alike .

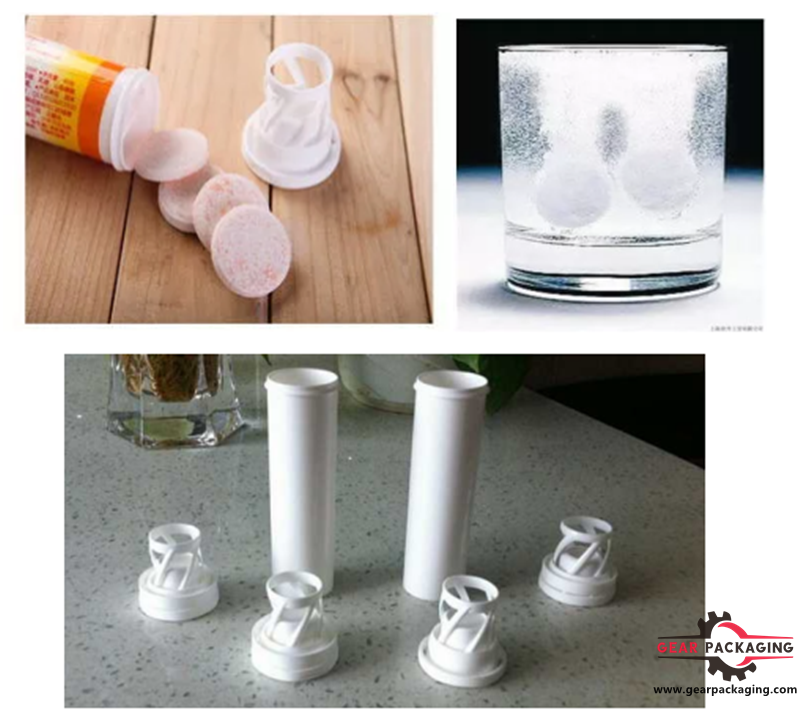

Sample picture:

Wooden case packaging and shipment:

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician allowance per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
