End Packaging Line

  • Automatic caton bags vacuum sealing machine bag-in-carton type sealing system
Automatic caton bags vacuum sealing machine bag-in-carton type sealing system

Automatic caton bags vacuum sealing machine bag-in-carton type sealing system

  • Model:GP-40V
  • Type:Bag vacuum sealer
  • Packaging Type:bag-in-carton
  • Dimension :L2160W1500H2810mm
  • Product description: Automatic bags vacuum sealing machine bag-in-carton type sealing system
  • INQUIRY

Description:

Automatic bags vacuum sealing machine bag-in-carton type sealing system

Technical parameter:

Model GP-40V
Machine dimension L2160W1500H2810mm
Packing size L:300~400mm W:200~300mm
Film material PE( as suggested)
Packing speed 4ctn/min
Net weight 480kg
Carton suggested weight 5~20kg/ctn
Power supply/Power 380V 50/ 60Hz ,  3Phase/8KW
Air pressure 8kg/cm³
Table Height 600mm
Max current 10A

This is the automatic plastic bag vacuum and sealing machine. It is normally combine with auto bag inserter and the case sealer. This is widely applied on the food industry.

Main Parts and brands:
1.PLC / Touch panel : SIEMENS
2.Sensor:German LEUZE
3.Intermediate Relay : OMRON
4.Temperature Controller:OMRON
5.Contactor: SCHNEIDER
6.Pneumatic Parts: Taiwan Sharko
7.Servo motor: Japan Mitsubishi
8.Glass color:Blue

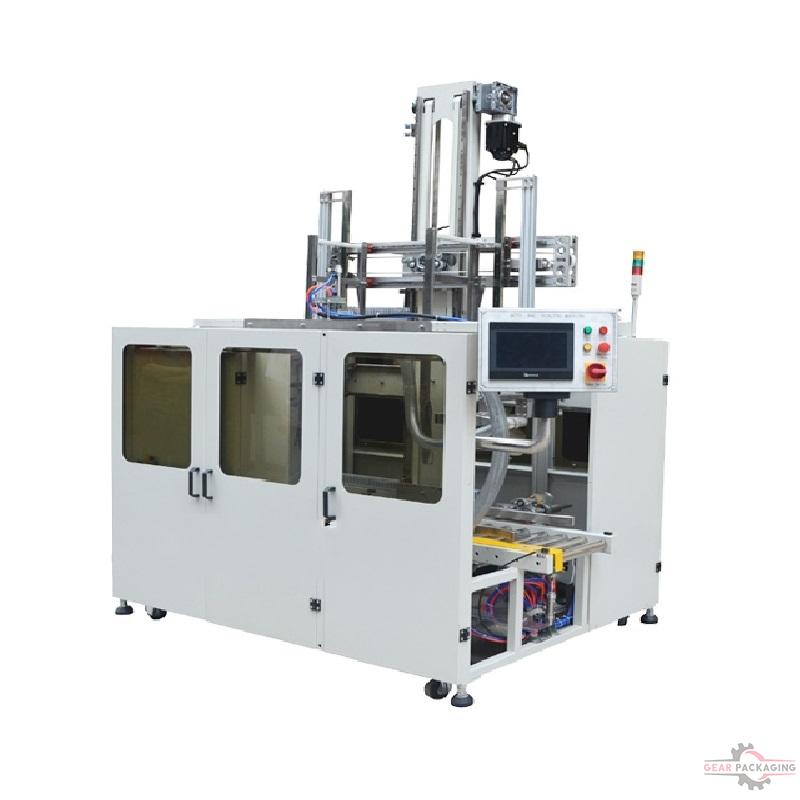

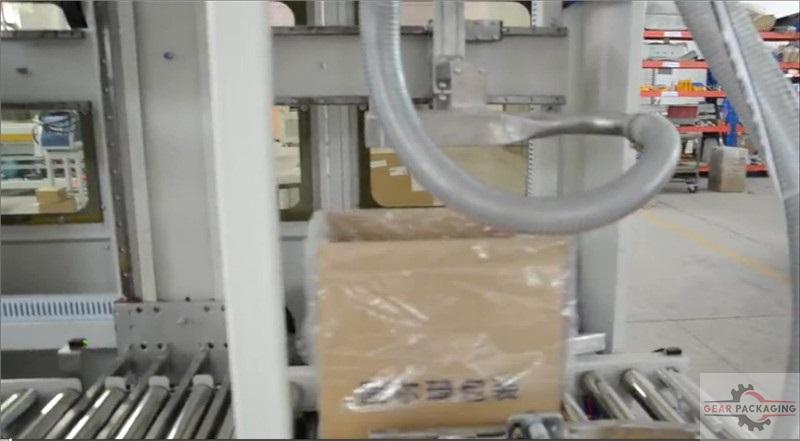

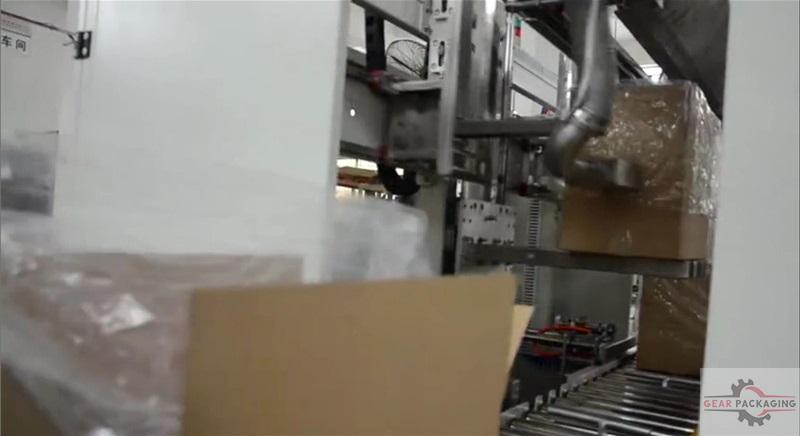

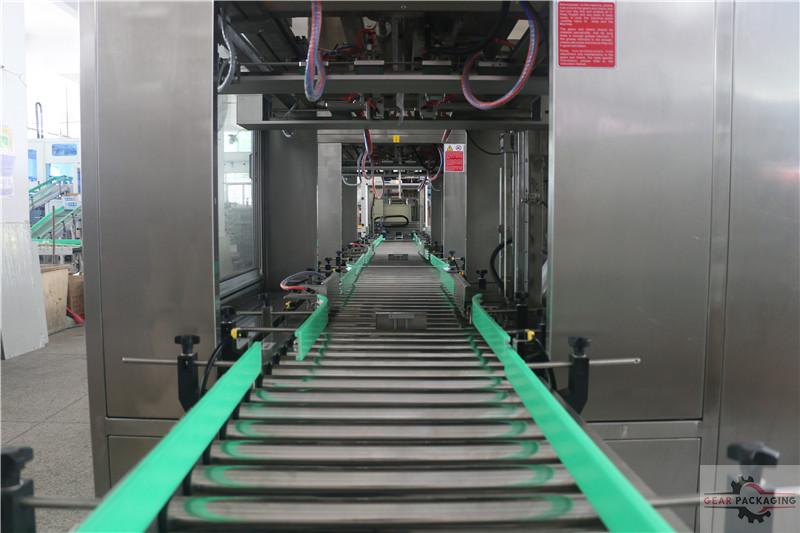

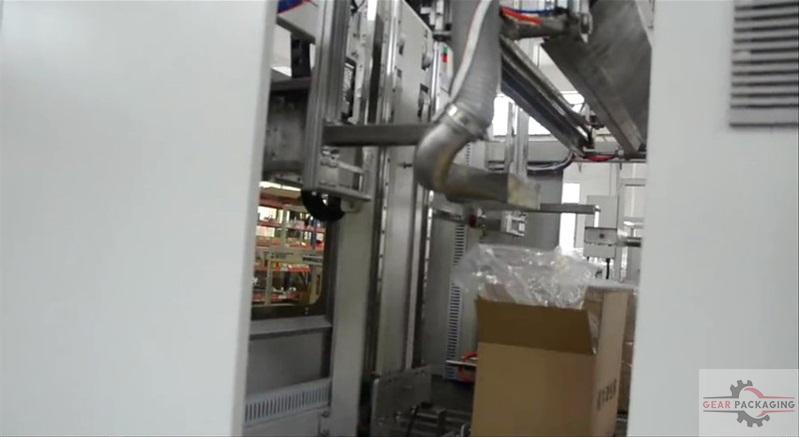

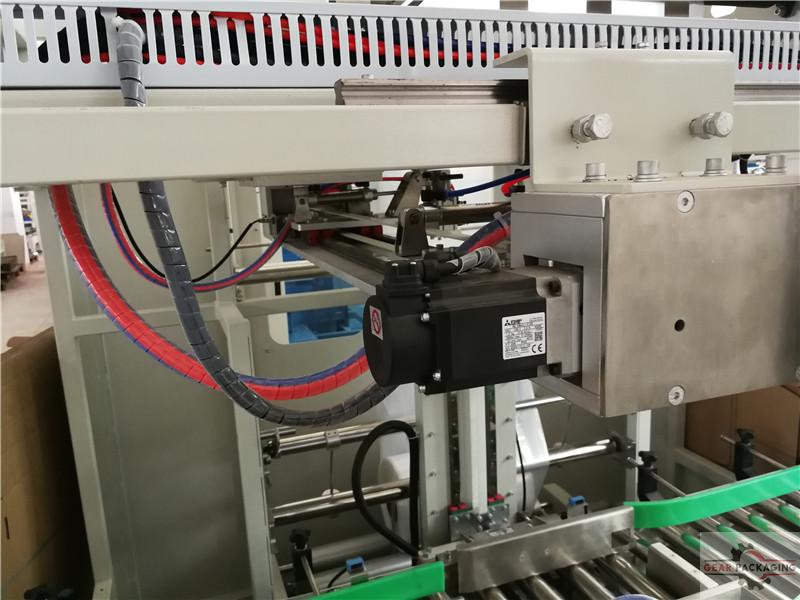

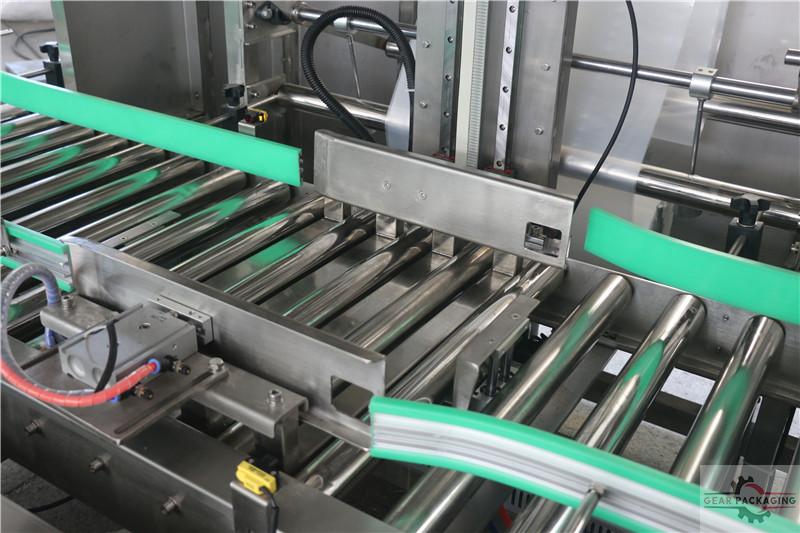

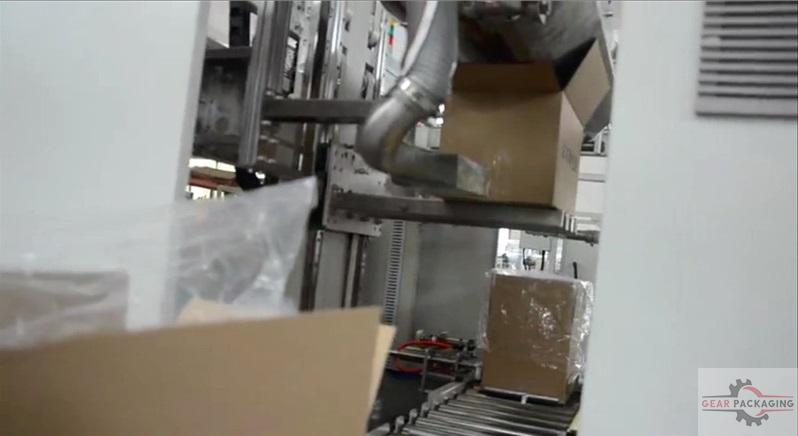

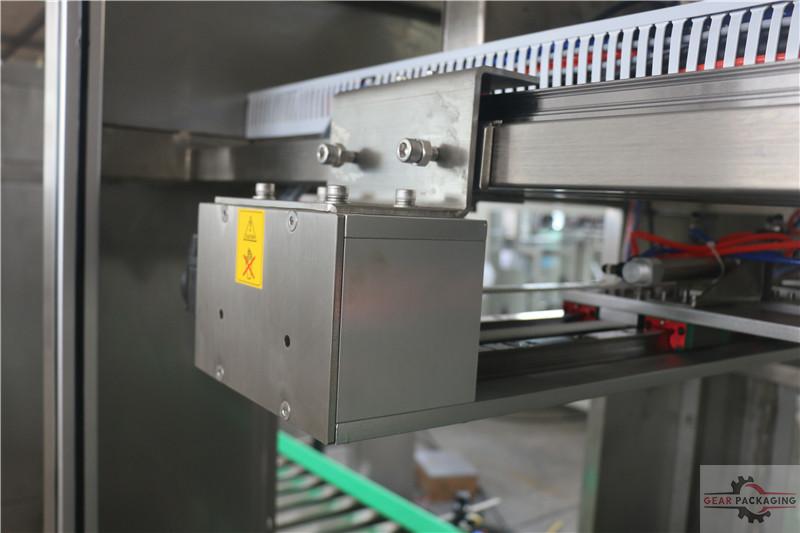

Machine detail pictures:
