  • Automatic Volumetric Liquid Filling & Capping Machine

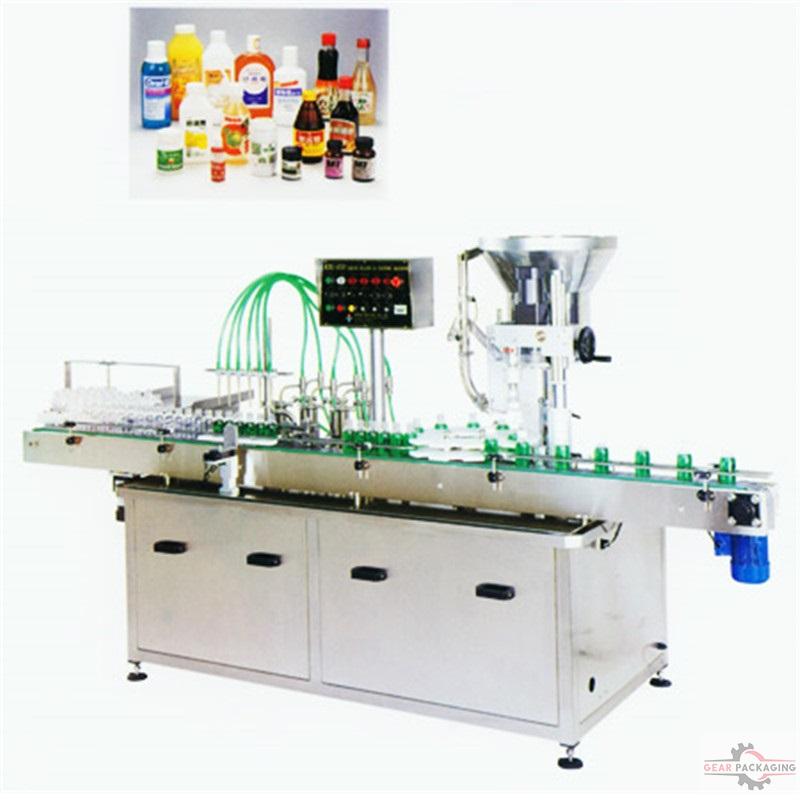

Automatic Volumetric Liquid Filling & Capping Machine

Automatic Volumetric Liquid Filling & Capping Machine

  • Model:GP-VFC
  • Type:Liquid Filling & Capping
  • Packaging Type:Bottles
  • Dimension :3520*1300*1950MM
  • Product description: Automatic Volumetric Liquid Filling & Capping Machine

Compact combination set of liquid filling & capping machines, providing labor savings (only one operatuor) & low requirement.
Accurate volumetric filling designed by cylindrical pistons.
Easy to adjust the filling volume.
Filling nozzles move upwards from bottom of bottle gradually,to
prevent foam-making.
Suitable for wide range liquid characteristic even high viscosity.
Suitable for high temperature liquid.
Automatic stop dervice for no bottles or caps.
Conveyor speed adjusted by invertor.
Automatic caps feeding design.
Friction clutch can be adjusted to exact torque required.
Perfect cap sealing and good looking.
Different bottle by changing star wheel,different caps by changing
vibrating bowl & chute.
Available for aluminum caps and plastic caps,such as screw caps,
press-on caps,filp-off caps,pifer-proof caps.
Easy clean up.
Long maintenance interval.
All stainless construction meeting G.M.P. requirements.
Pharmaceutically liquid, chemical liquip, cosmetics, lotions, shampoos, sauces,syrups, oil, beverages.
Capacity Max 60 bottles/min
Filling Volume (1) 5~60ml
(2) 30~150 ml
(3) 100~500 ml
Compressed Air &
Air Consumption
5 kg/cm2, 30L/min
Power Supply
AC 220V, 60/50Hz, Single Phase
Power Consumption 1.5 KW
NET Weight
1240 kg
Gross Weight 1540 kg
Packing Size(cm) 352(L) x130(W) x195(H)

Machine Size (cm):
