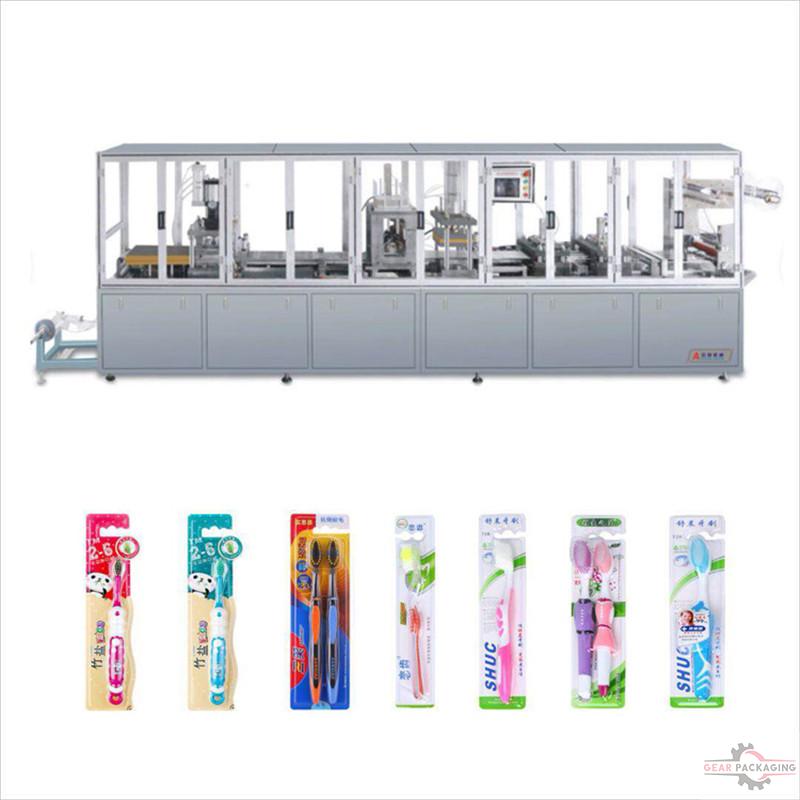

Automatic toothbrush paper plastic packaging machine toothbrush blister tray forming paper card sealing packing machine toothbrush packing line

Description:

Automatic toothbrush paper plastic packaging machine toothbrush blister tray forming paper card sealing packing machine toothbrush packing line

Model:GP-320B

Technical parameter:
production speed: 8-15 cycle/min
stroke range: 30-260mm
max.forming area: 300x255mm
max.forming depth: 40mm
forming heating power: 6kw
heat sealing power 3.5kw
total power: 13kw
air pressure: 0.5-0.8Mpa
air consumption: ≥0.5L
packing material: PVC PET

The machine can automatic forming toothbrush blister,droping paper card, hot sealing, cutting, converying finished products out etc.

It is used for full-sealed paper-plastic packing, for examples: daily commodity (toothbrush, shaver, nipple, stick hooks),small hardware(battery, electronics , glue), stationery(pencil sharpener, eraser, correction fluid,solid glue), Autoparts(brake, spark-plug),commecstics (lip stcik),Medicines (safflower oil,essential Balm),Toy (small car), medical instruments, food etc.

Main features
A. Mechanical transmission, servo motor driving, encoder control, reasonable structure, easy operation.
B. 304 stainless steel frame, beautiful appearance, convenient for cleaning.
C. PLC control system, frequency speed adjust, which will help to reduce the noise and improve the running stability of the machine.
D. Photoelectrical control, auto detection.
E. Separated card feeder, which will reduce the labor force.
F. The whole machine is separately designed, it is convenient to delivery with lift.
G. To design the mould and auto feeding method according to the product shape.

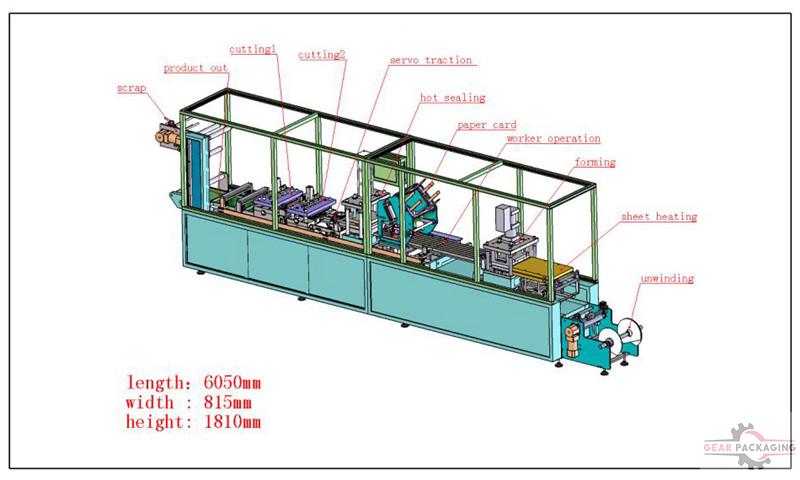

Machine overview
Blister card packing  machine is the new  equipment  which is developed by our technical department based on the mature  technology from pharmaceutical packing machinery of more than ten years, and  absorbing  the working principle of similar machine at home and abroad. It has the feature of advanced technology,complete function, reasonable working process, easy operation, and convenient maintenance.

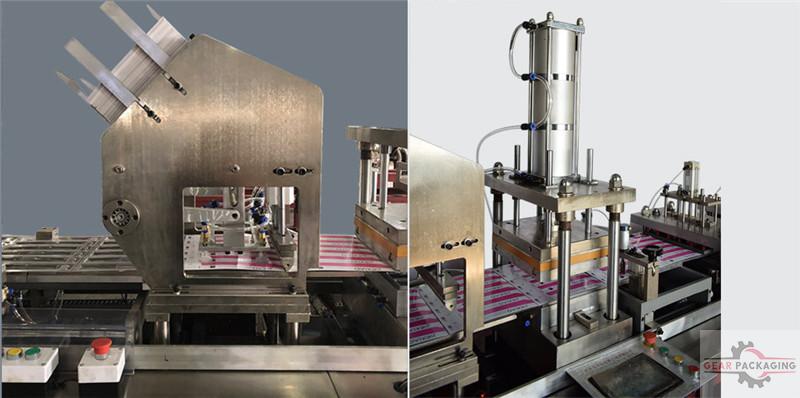

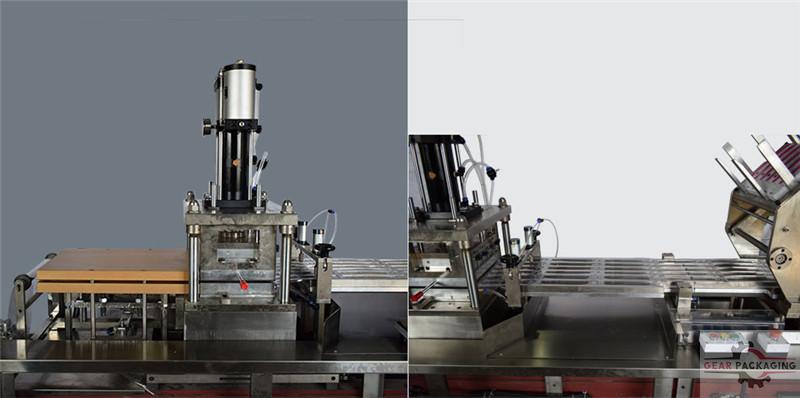

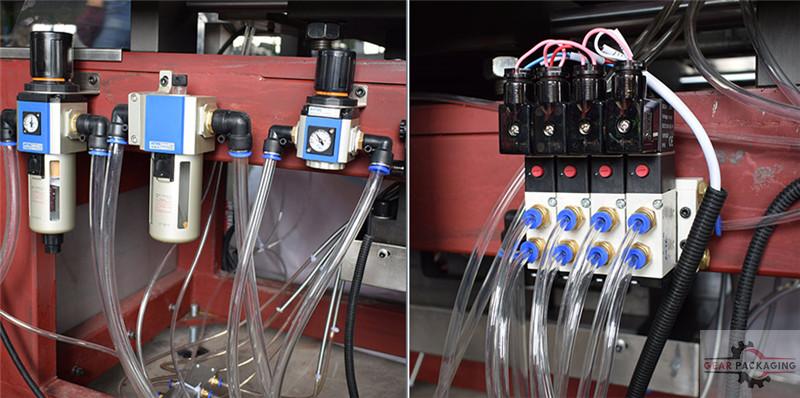

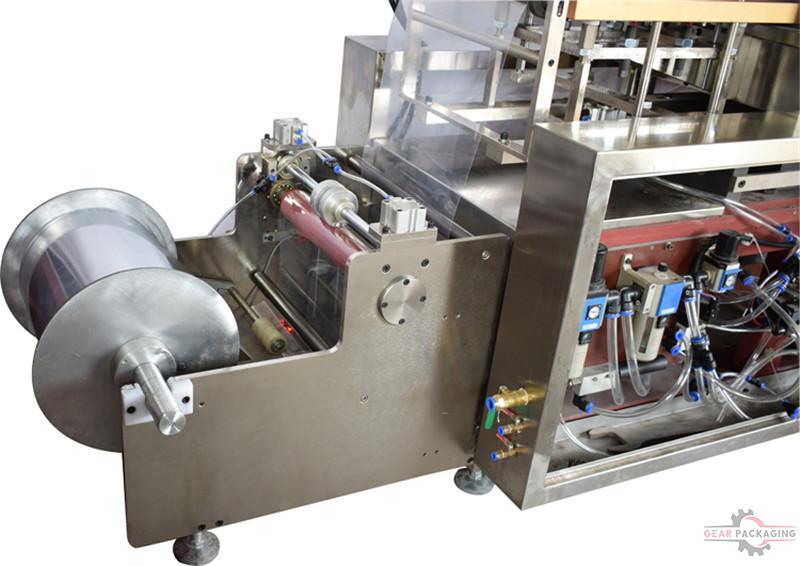

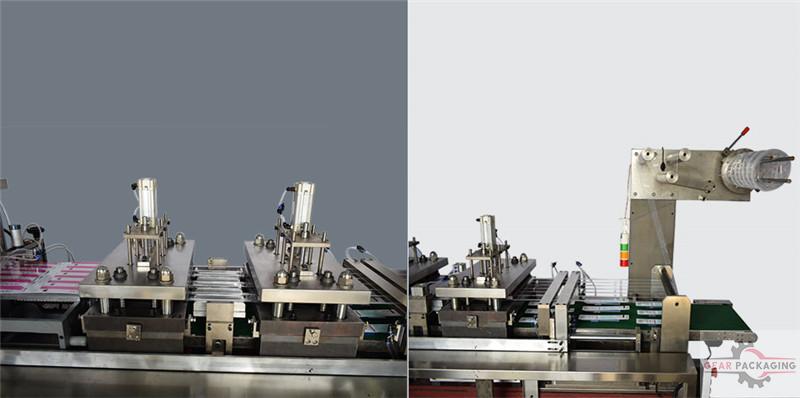

Machine detail pictures:

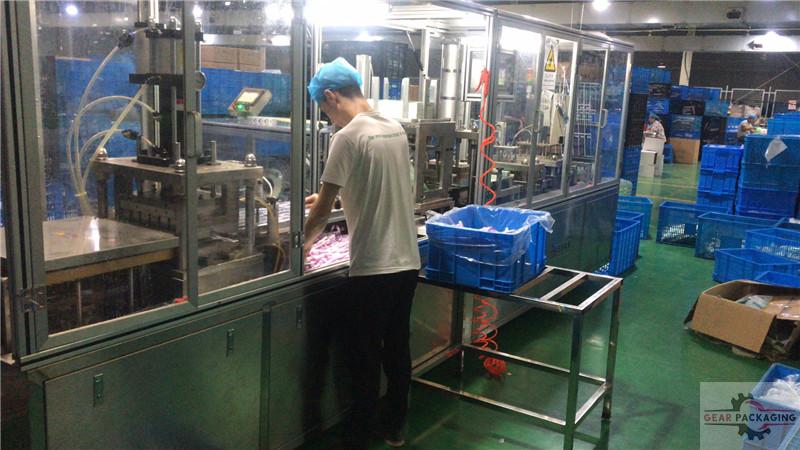

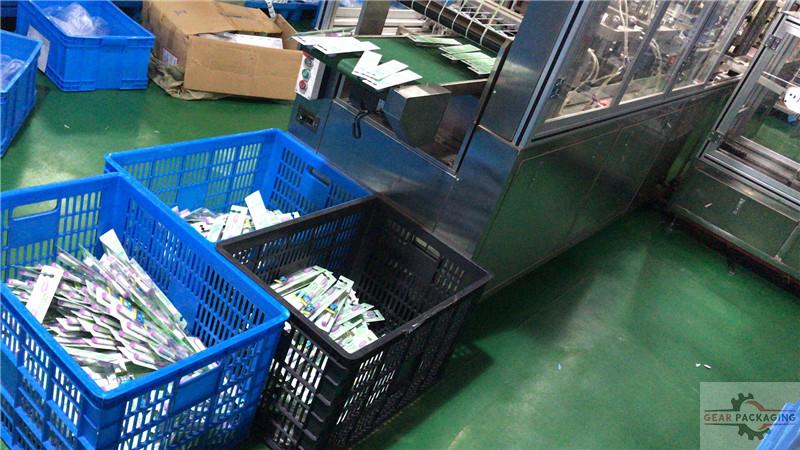

Machine running in the customer's production factory

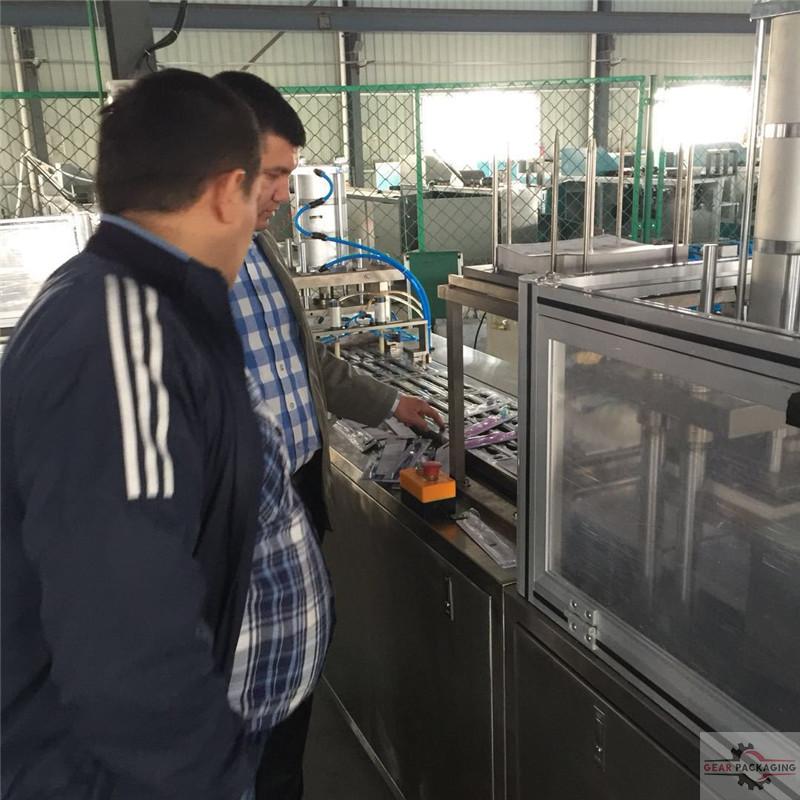

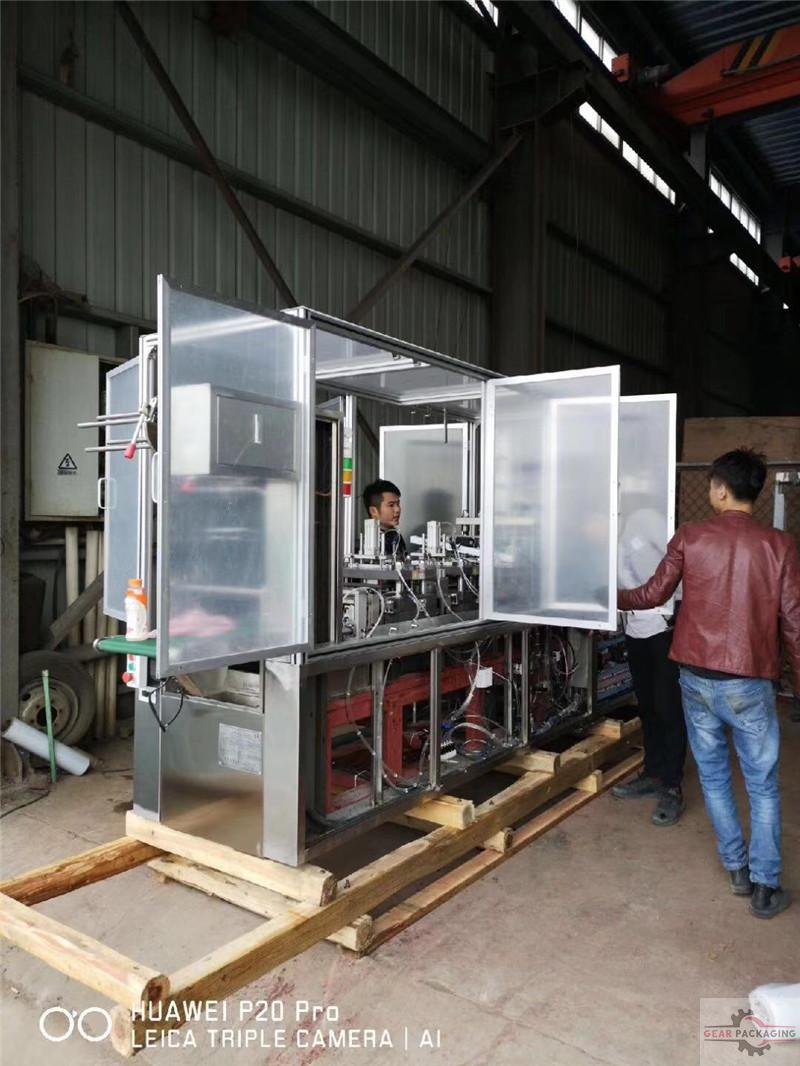

Customer inspection on scene in our workshop before delivery:

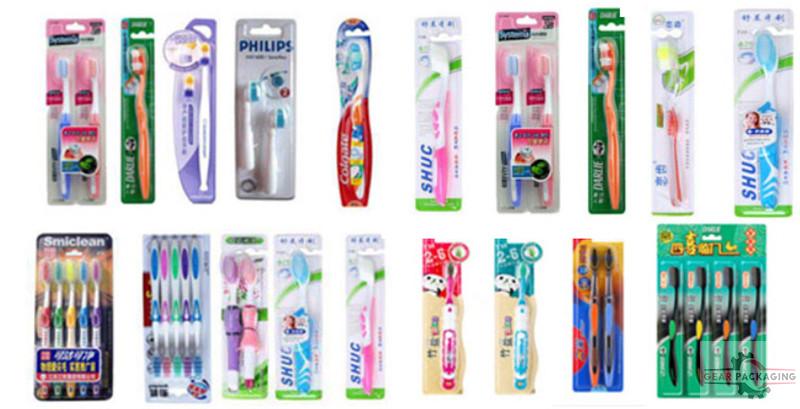

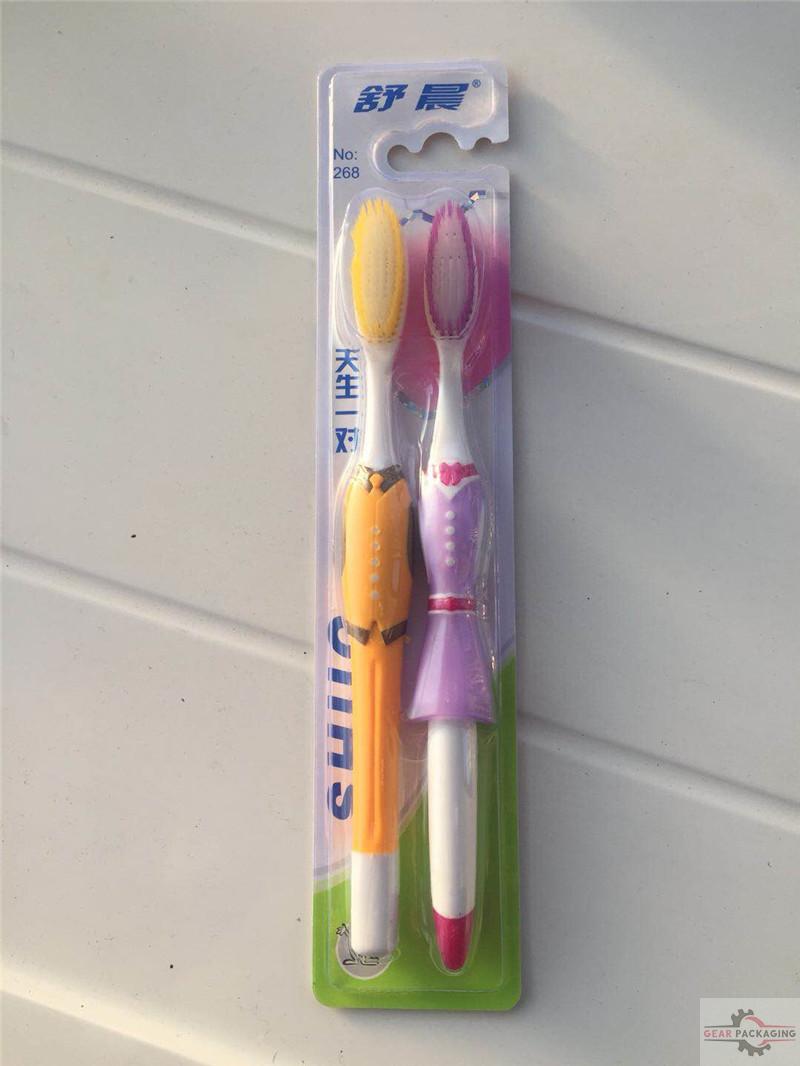

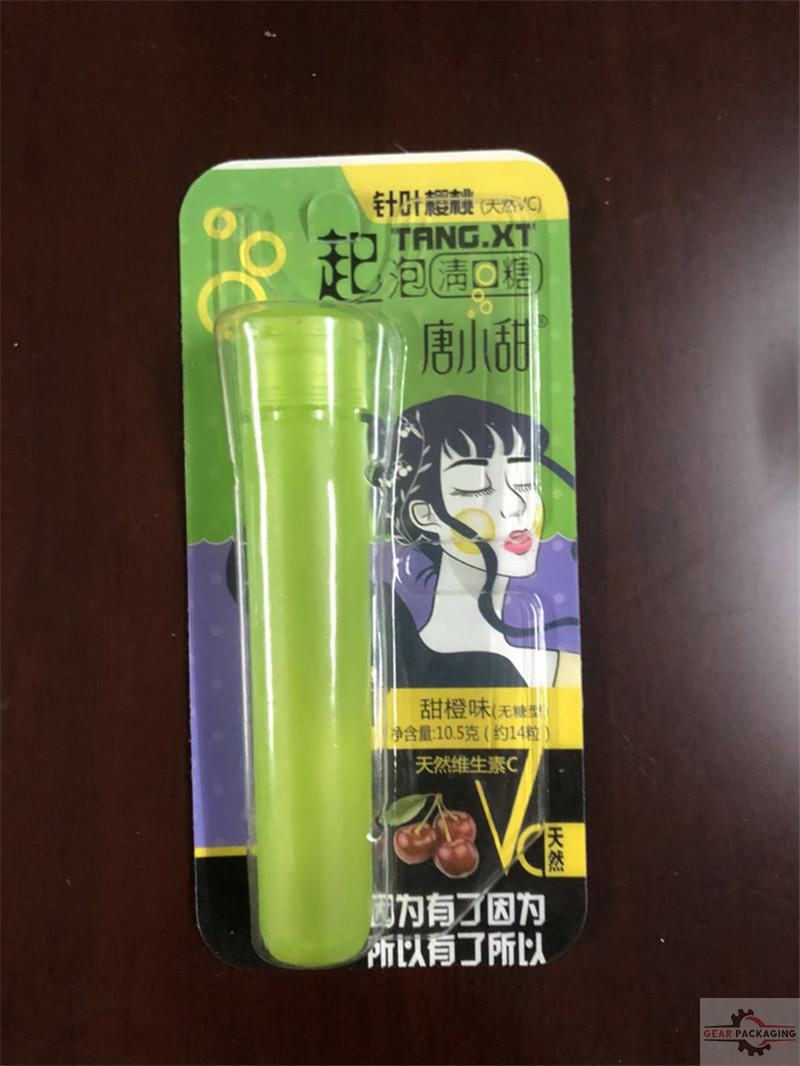

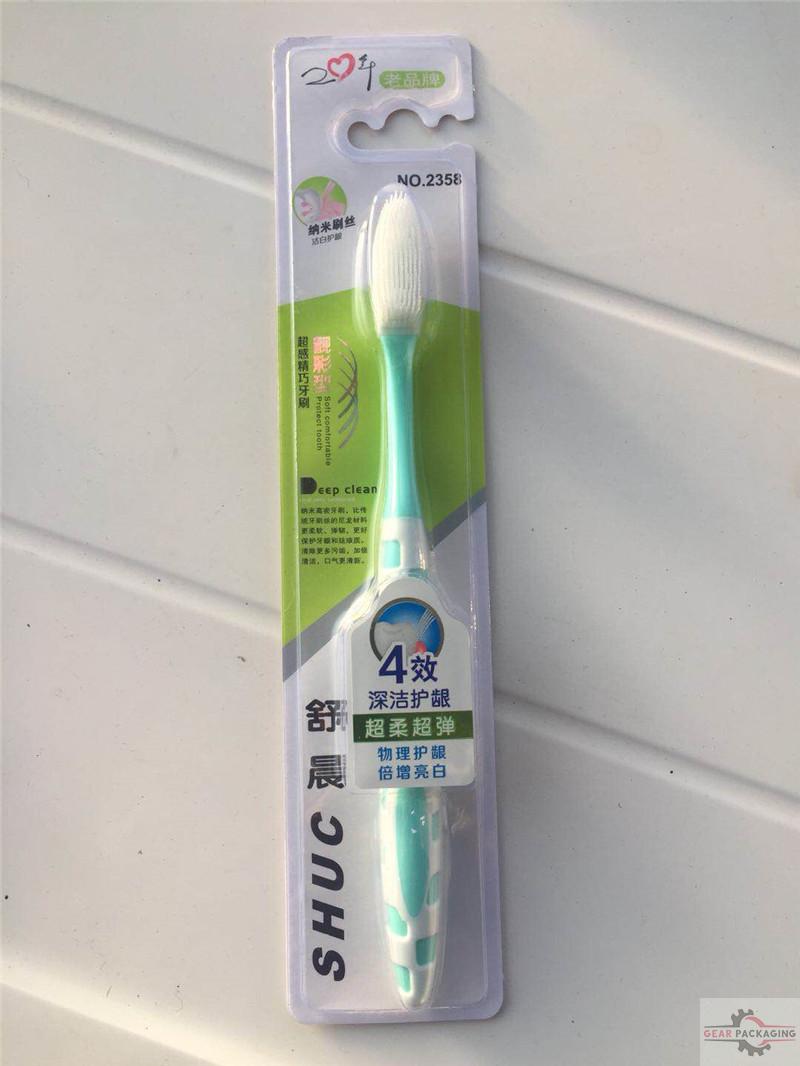

Sample pictures:

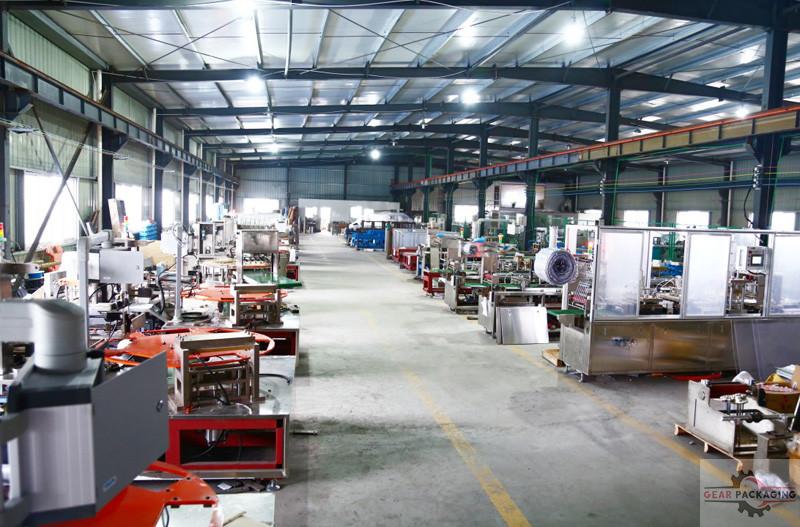

Factory working for machine process,assembling and testing:

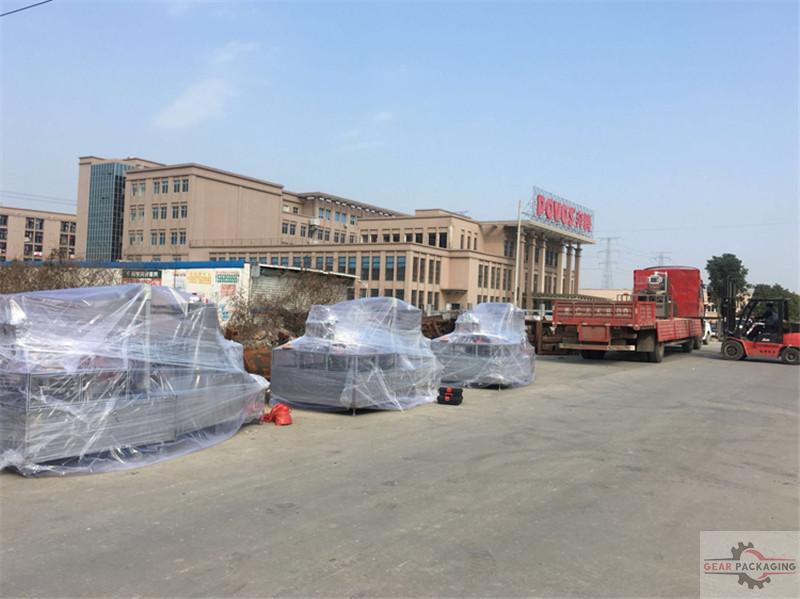

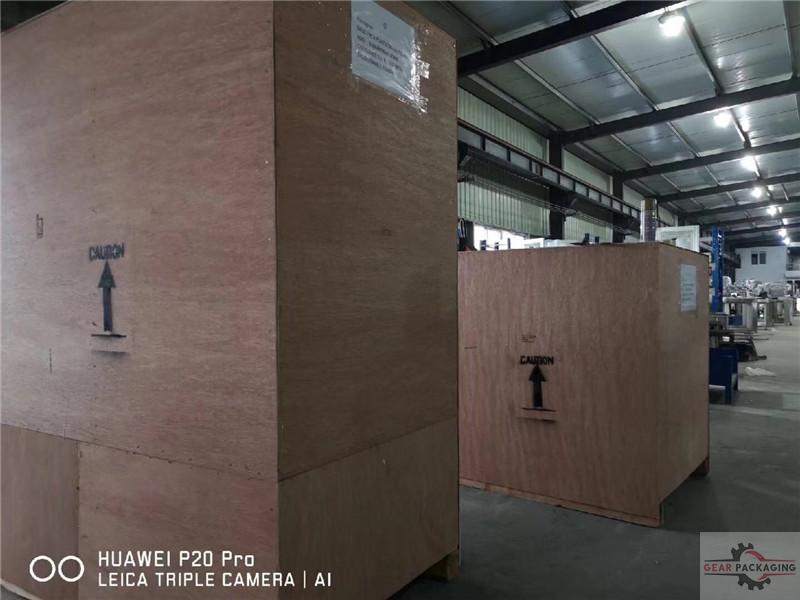

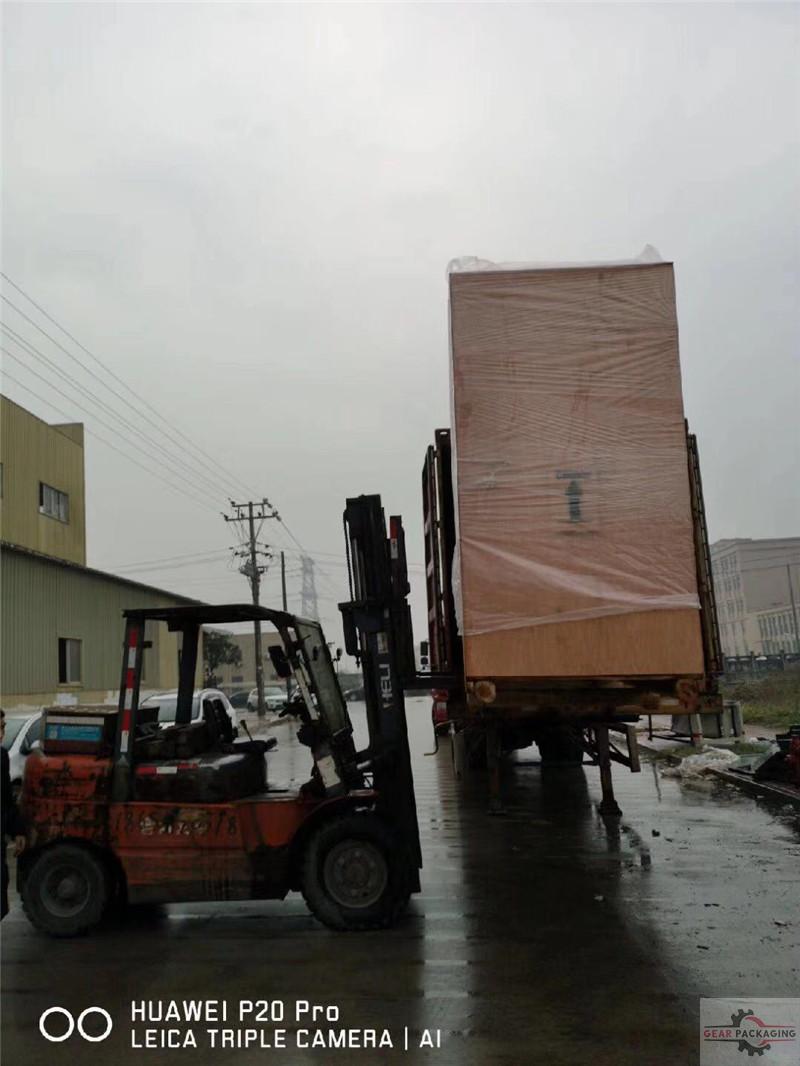

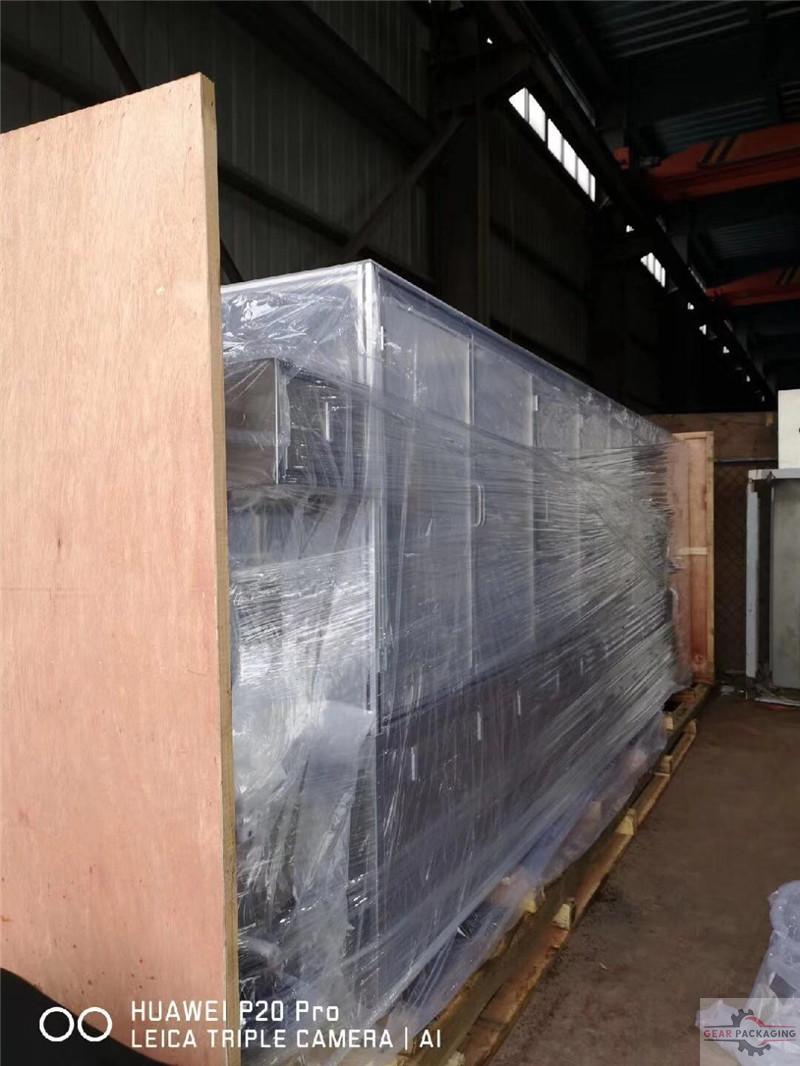

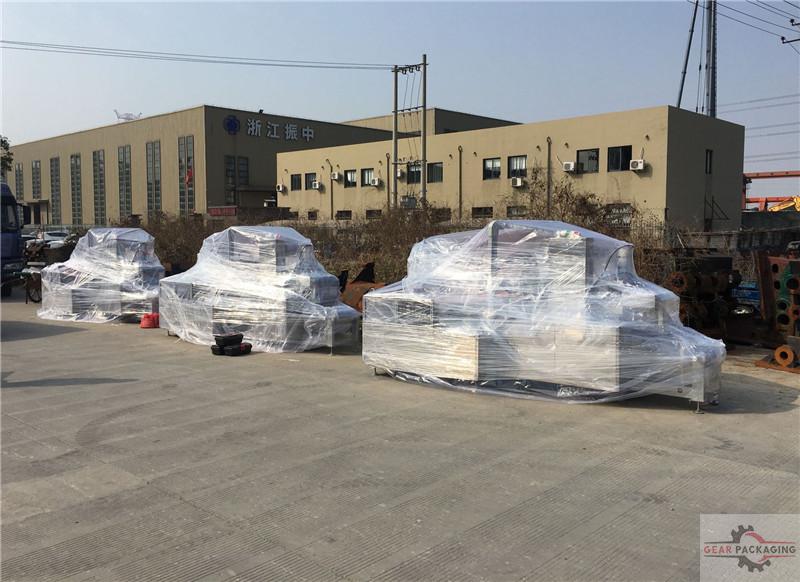

Machine packaging and delivery:

After sales service
Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD80 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
